📐 Factors That Affect Shielding Thickness Calculations for Healthcare Radiology

One of the most common questions we hear is: “How thick does the shielding need to be?” It’s a fair question—but the answer is rarely simple.

Shielding thickness in healthcare radiology isn’t chosen from a chart or guessed based on room size. It’s calculated by a physicist using a combination of technical inputs and real-world details about how the room will actually be used. Understanding these factors helps facilities plan better, avoid surprises, and order the right Intech products the first time. 🧠

🔬 First Things First: Who Calculates Shielding Thickness?

Shielding thickness is determined by a medical or health physicist. Their job is to ensure radiation exposure stays within safe limits for:

• ⚕️ Staff
• 🤝 Patients
• 🚶 People in nearby rooms or hallways

The physicist’s calculations culminate in a shielding report that specifies required lead equivalency (for example, 1/16″ Pb or 2.0 mm Pb) for each wall, door, window, ceiling, and sometimes the floor.

⚡ Factor #1: Type of Imaging Equipment

Different imaging systems produce different types and energies of radiation, which directly affects how much shielding is needed.

For example:

• 🦷 Dental X-ray units usually require less shielding due to lower energy and shorter exposures.
• 🌀 CBCT systems (cone-beam CT) often require more shielding because the beam rotates and exposes more surfaces.
• 🏥 General radiography and fluoroscopy systems can require thicker barriers, especially in high-use rooms.

This is why a CBCT room in a dental office may need more protection than a standard intraoral X-ray room—even though both are “dental.”

🕒 Factor #2: Workload (How Often the Room Is Used)

A room used all day, every day needs more shielding than one used occasionally—even if the machines are identical.

Physicists look at:

• 📅 Exams per day or week
• ⏱️ Typical exposure times
• 🔄 Repeated procedures

This is why future growth matters. If you expect patient volume to increase, shielding may need to be designed with that in mind.

👥 Factor #3: What’s on the Other Side of the Wall

Not all walls are equal. A wall facing a public hallway is treated very differently than one facing a storage room.

Physicists consider occupancy—how often people are in nearby spaces.

For example:

• 🚶 Hallways, offices, and waiting rooms require more protection
• 📦 Storage rooms or mechanical spaces often require less

This is why shielding thickness can vary from wall to wall within the same room.

🎯 Factor #4: Beam Direction

X-rays travel in straight lines until they hit something. Surfaces that face the primary beam usually require the most shielding.

Walls that only receive scattered radiation may require less thickness—but they still must be shielded.

Beam direction is especially important in:

• 🌀 CBCT rooms, where the beam rotates
• 🩺 Fluoroscopy rooms with multiple angles

📏 Factor #5: Distance from the Source

Radiation spreads out as it travels. The farther away a surface is from the X-ray source, the less intense the radiation becomes.

This means:

• 📍 Close walls may need thicker shielding
• 📐 Distant surfaces may need less

Even a few feet can make a measurable difference in calculations.

🧱 Factor #6: Openings and Interruptions

Doors, windows, pass-throughs, and penetrations all affect shielding design.

A wall with:

• 🚪 A door
• 🪟 A viewing window
• 🔌 Electrical or mechanical penetrations

…must be treated carefully to ensure shielding continuity. The lead thickness of doors, frames, windows, and surrounding materials must all match.

This is where products like leaded glass windows, lead-lined drywall, and lead or lead-free curtains come into play.

🧩 How These Factors Turn Into Real Products

Once all factors are considered, the physicist specifies required lead equivalency. Intech then helps translate those numbers into physical products, such as:

• 🧱 Lead-lined drywall with the correct Pb thickness
• 🚪 Lead-lined doors and frames that overlap wall shielding
• 🪟 Leaded glass sized and rated for compliance
• 🧵 Flexible shielding where fixed barriers aren’t practical

The key is that every component works together as a system.

⚠️ Why Guessing Shielding Thickness Is Risky

Under-shielding can lead to failed inspections and unsafe exposure. Over-shielding can waste money and materials.

That’s why proper calculations—and ordering products that match them exactly—matter so much.

✨ Key Takeaways

• 📐 Shielding thickness depends on many factors, not just room size
• ⚡ Equipment type and workload are major drivers
• 👥 Occupancy and beam direction affect each wall differently
• 🧱 Doors and windows must match wall shielding
• 🤝 Physicists calculate requirements; Intech supplies the materials

📩 Ready to Order Shielding with Confidence?

If you have a shielding report—or are in the planning stage—Intech can help you select the right combination of lead-lined walls, windows, doors, and flexible shielding to match your physicist’s calculations.

Contact our team and let’s turn your shielding numbers into a safe, inspection-ready space. 🛡️📐

Radiation shielding only works when everyone plays their part. Learn how owners, architects, and physicists share responsibility—and how Intech supports the process.

Radiation doesn’t move randomly. Learn how radiation travels—and why walls, doors, windows, and barriers are designed the way they are to keep people safe.

Cyclotrons, linear accelerators, and radiation therapy rooms require advanced shielding. Learn how these spaces are protected and which Intech products support safe, compliant designs.

Interventional radiology requires shielding that protects staff while preserving access to patients and equipment. Learn how to balance safety and workflow with the right shielding solutions.

Designing an X-ray room? Learn what to know about lead-lined walls and doors, how shielding is specified, and how Intech helps you build inspection-ready rooms.

Get a sneak peek at Intech’s upcoming lead cave covers—custom, reinforced-plastic shells designed to reduce lead exposure and improve safety around lead brick caves.

Learn how shielded pass-throughs, hatchways, and observation windows are built—and which Intech products are commonly used to keep radiation contained without disrupting workflow.

Who helps you figure out what to send Intech for a shielding quote? Learn what information each person on your team provides so Intech can build an accurate, inspection-ready package.

Explore Intech’s bestselling radiation shielding products—lead-free curtains, lead bricks, lead plate, and Fortress wall panels—and learn why they’re industry favorites.

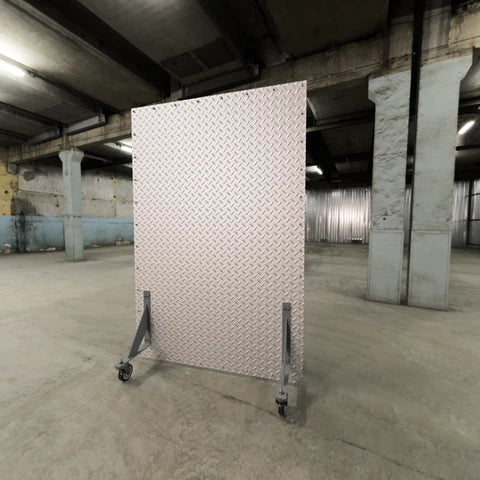

See how Intech’s lead-free Industrial Mobile Radiation Shielding Barrier compares on protection, durability, mobility, freight, and future compliance—plus when to choose custom wall-mount or stationary builds.

Five breakthrough technologies—AI planning, real-time dosimetry, smart modular barriers, advanced lead-free materials, and digital QA—that could transform radiation safety in the next decade.

Learn how to future-proof your facility with lead-free shielding materials that meet safety standards, reduce environmental risks, and prepare you for upcoming regulations.

Explore how lead shielding is used in military and homeland security applications — from radiation detection and weapons testing to mobile protection systems.

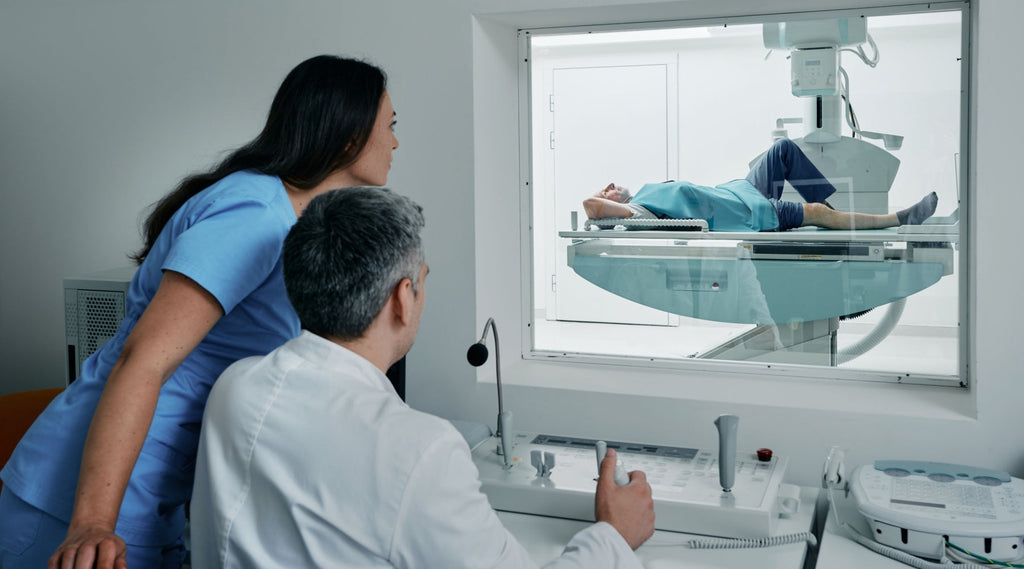

What is lead acrylic and when should you use it? Learn how clear, radiation-shielding acrylic panels provide protection and visibility for medical, dental, veterinary, and industrial imaging.
