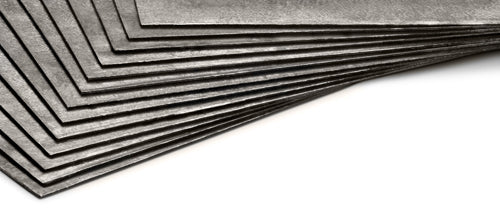

Lead Plate

$945.00
Shipping calculated at checkout.

Flat Lead Plate

Lead plate or sheet is a preferred solution for radiation shielding in many applications, including X-ray shielding, tank lining, acoustic shielding and nuclear shielding. We offer lead plate in almost any thickness and size. To request a quotation on an exact specification of lead sheet you require, please call us or send a email. Regardless of the specialized you are considering, we are available to offer appropriate options to meet your needs.

Lead Plate Specifications

We offer lead plate in thicknesses ranging from 1/64" up to 5".

Lead Plate Weight Table

Thickness Decimal Equivalent Metric Equivalent weight lbs/ft2
1/64″ .0156″ 0.397 mm 0.92
1/32″ .0313″ 0.795 mm 1.85
3/64″ .047″ 1.193 mm 2.77
1/16″ .0625″ 1.588 mm 3.69
5/64″ .078″ 1.981 mm 4.61
3/32″ .094″ 2.388 mm 5.54
1/8″ .1250″ 3.175 mm 7.38
5/32″ .1562″ 3.968 mm 9.23
3/16″ .1875″ 4.762 mm 11.1
1/4″ .2500″ 6.350 mm 14.8
3/8″ .3750″ 9.525 mm 22.1
1/2″ .50″ 12.70 mm 29.5
3/4″ .75″ 19.05 mm 44.3
1″ 1.00″ 25.40 mm 59.0
1-1/2″ 1.50″ 38.10 mm 88.6
2″ 2.00″ 50.80 mm 118
2-1/2″ 2.50" 63.50 mm 148
3" 3.00" 76.20 mm 177
4" 4.00" 101.6 mm 236
5" 5.00" 127.0 mm 295



Need Help ?

If you don't see what you need or have questions, you can reach us by email, phone +1 (832) 519-8787or use our contact form.
